SICP Exercise 3.29

Question

Another way to construct an or-gate is as a compound digital logic device, built from and-gates and inverters. Define a procedure or-gate that accomplishes this. What is the delay time of the or-gate in terms of and-gate-delay and inverter-delay?

Answer

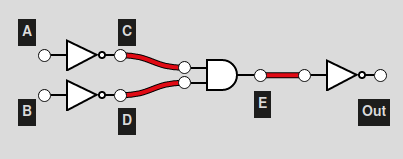

Something like the following works:

(define (or-gate a b output)
  (let ((c (make-wire))
        (d (make-wire))
        (e (make-wire)))
    (inverter a c)
    (inverter b d)
    (and-gate c d e)
    (inverter e output)
    'ok))

The total delay here will be two inverter-delay​s and one and-gate-delay.
